Pipe Magnet

FIELD OF USE

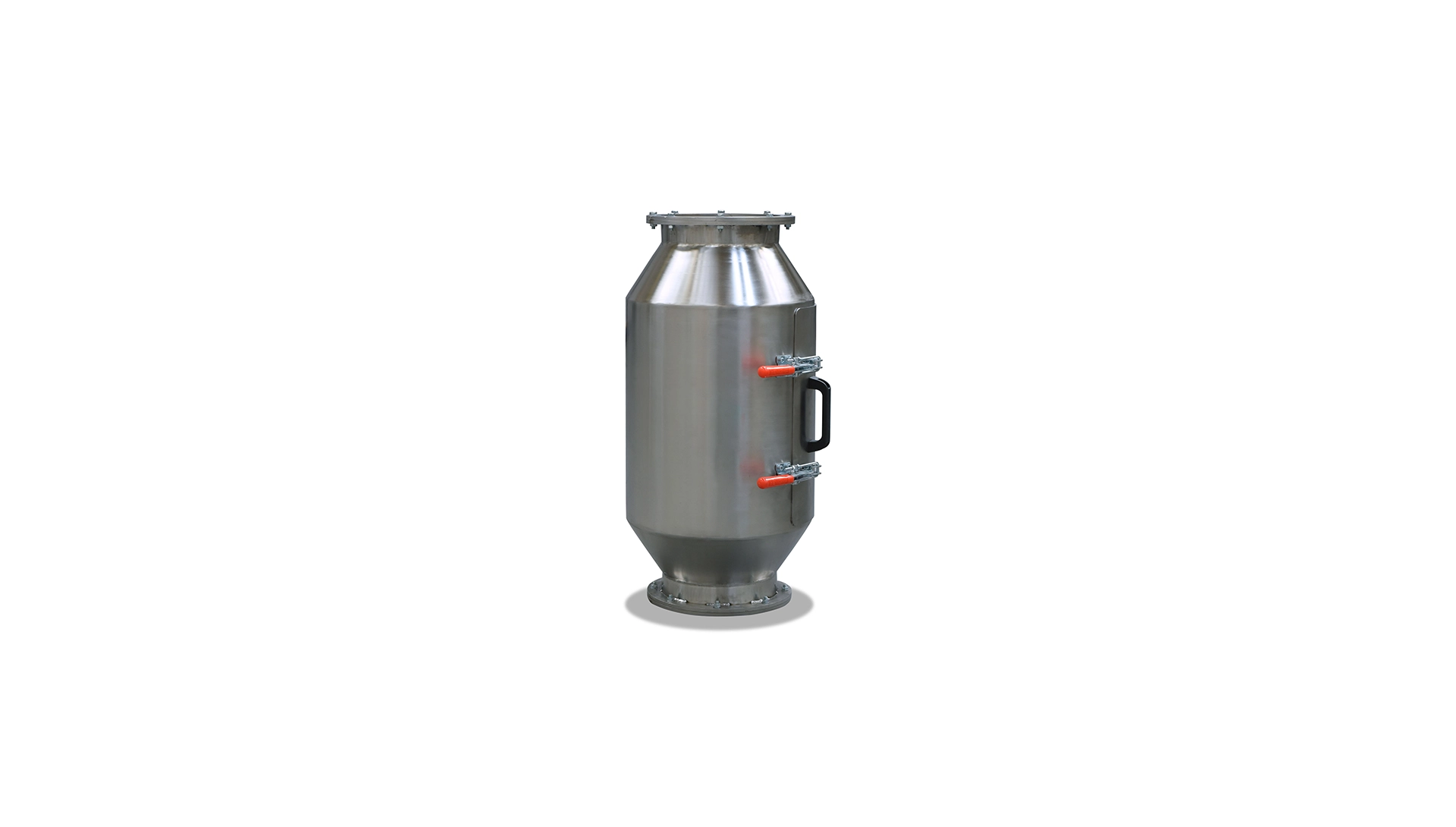

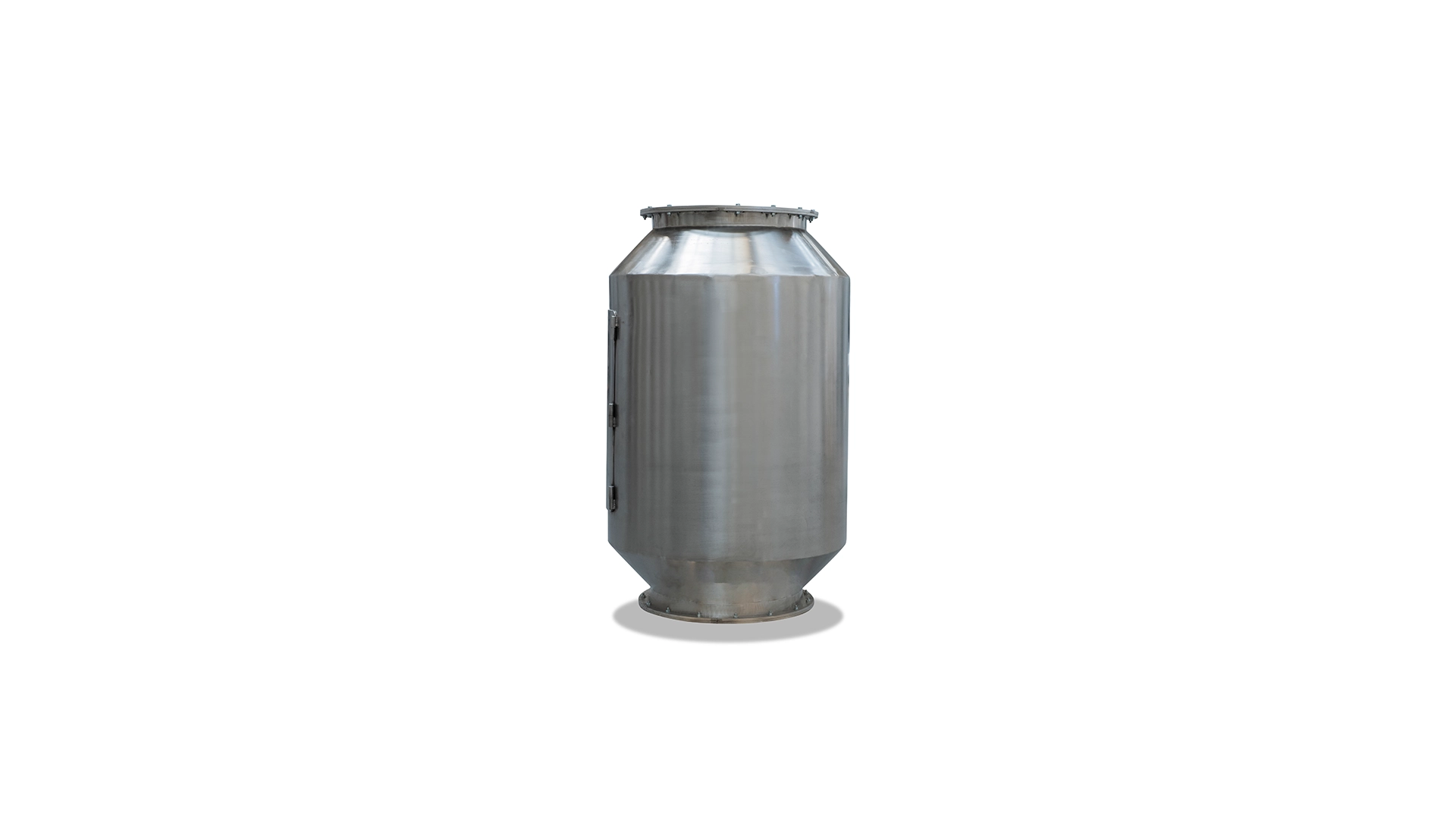

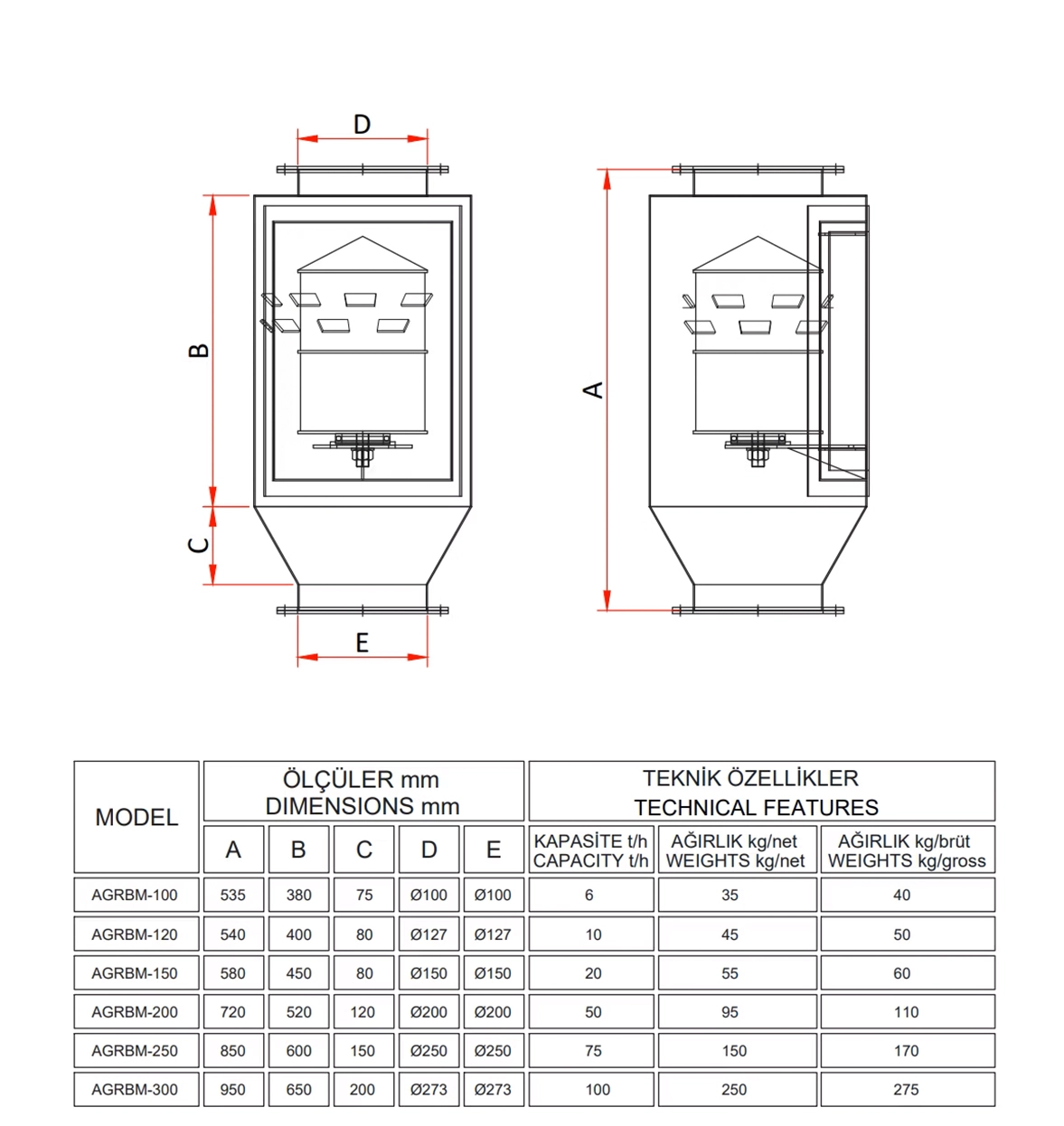

It provides continuous cleaning and separation by relatively cleaning the particles in the product to be processed. The circular magnetic separator is specifically designed to discharge iron-magnetic contaminants from flour, grains, and cereals in typical applications. These contaminants are held by the magnetic core. The machine consists of a cylindrical coating along with a flanged cylindrical load-catching collar and a flanged conical outlet nozzle. The above-mentioned coating includes a cover and a quick-closing mechanism. The magnet is fixed inside the door via a specific support. Sliders are mounted inside the cover to ensure product distribution.

FEATURES AND ADVANTAGES

  • High efficiency, excellent cleaning and separation.
  • No extra space required.
  • Strong magnetic force.
  • Easy and minimal maintenance.
  • Precise operation.
  • Durable
