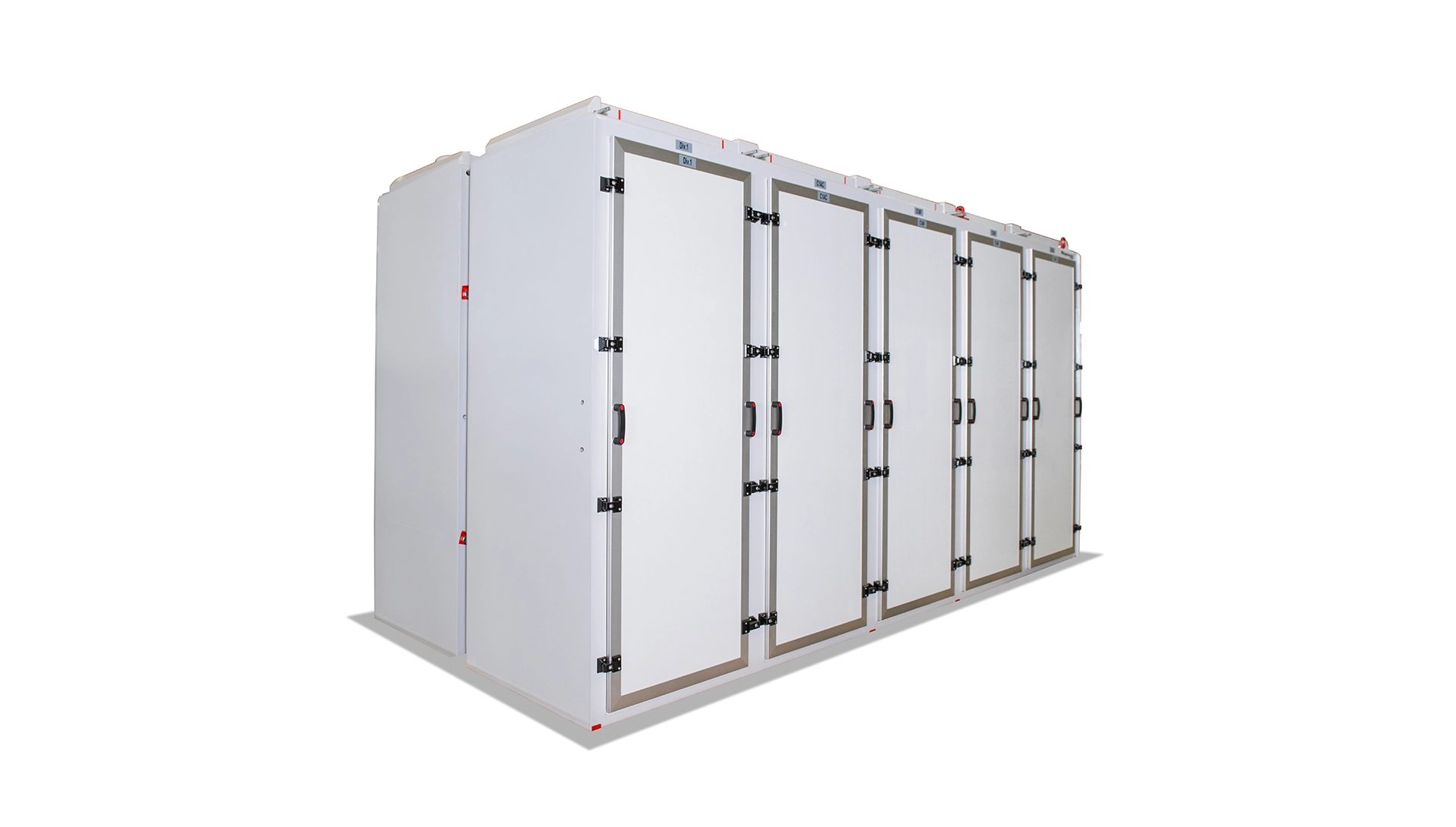

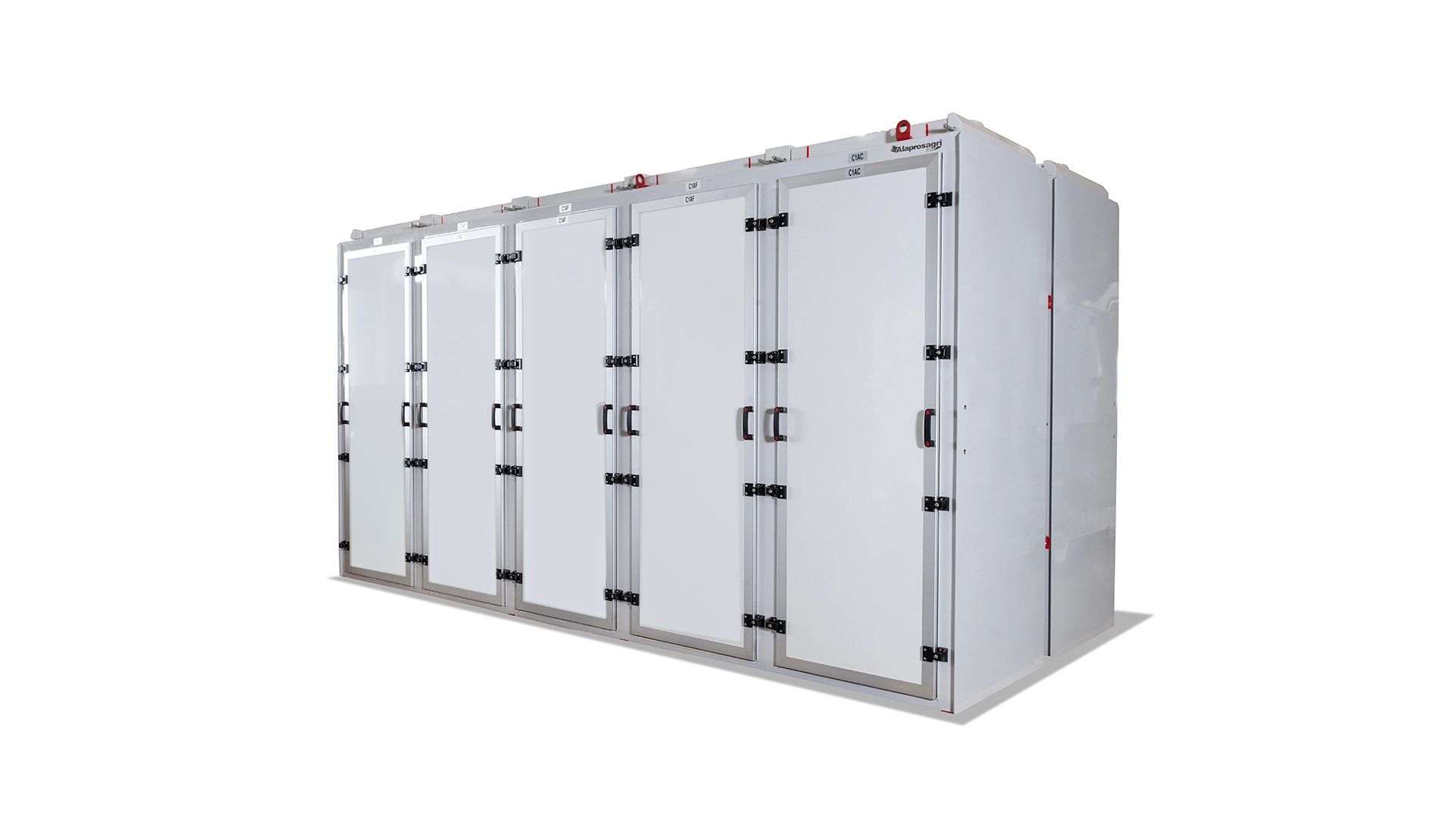

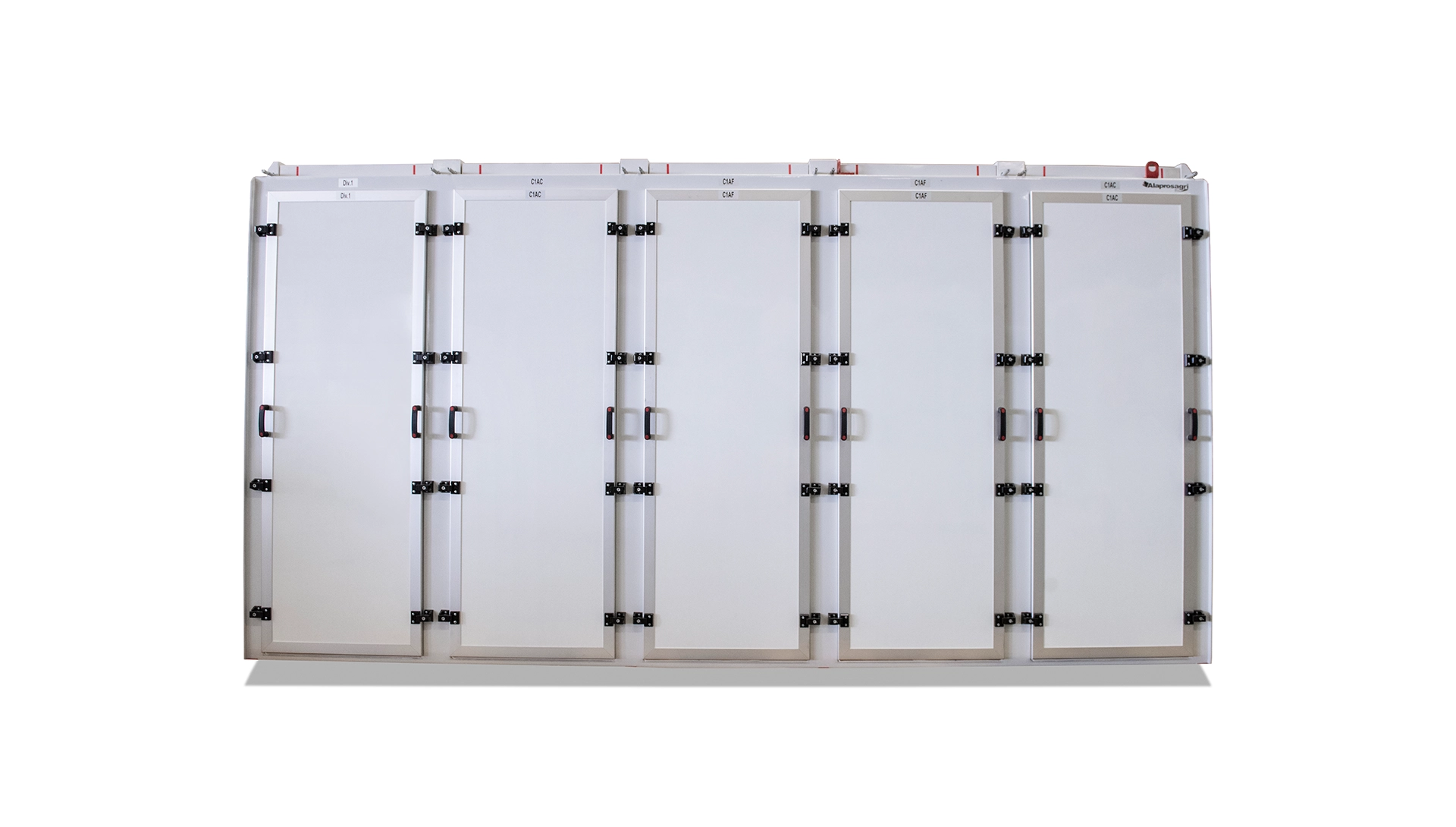

Jumbo Plansifter

FIELD OF USE

This equipment is specifically used in our mills and grain processing plants, and it is employed at all stages of the milling process for classifying intermediate products by particle size and sorting the flour. In grain processing plants, especially flour and semolina facilities, it is used to classify other products by grain size and separate the flours.

The product entering through the single or double inlet box mounted on the machine’s upper housing moves through the box toward the outlet according to the machine’s operating principle. In this way, the product is sifted by type across normal and horizontally divided passages.

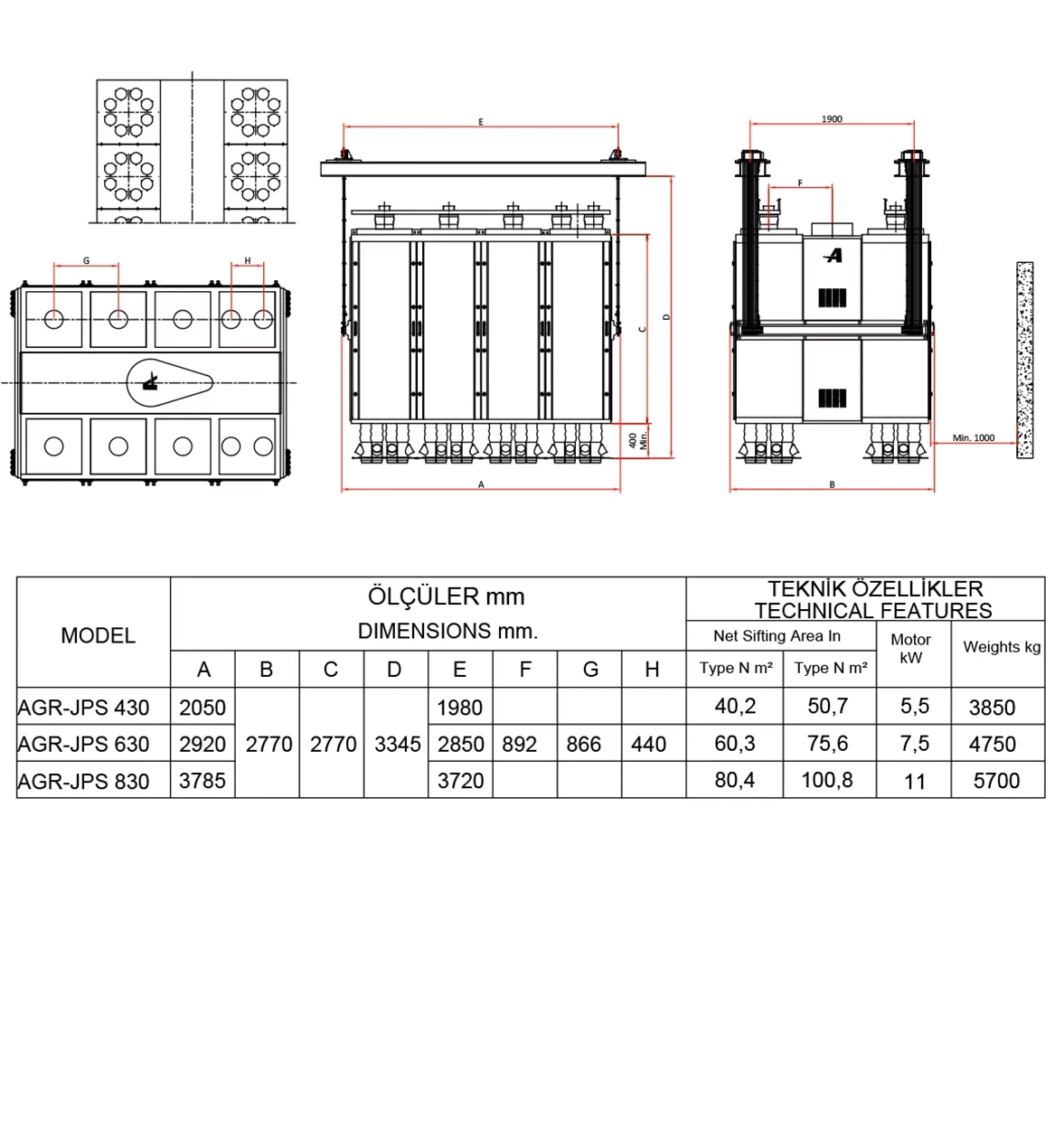

The machine is produced in two types: the standard 64×64 housing with a normal sifting area and the Jumbo 74×74 housing with a larger sifting area. The machine is designed to provide the necessary oscillation via adjustable weights mounted on the shaft at the center of the machine, ensuring effective and precise sifting.

The frames used in the housings are produced in two types: standard wooden frames made of stainless steel or aluminum, and nova frames. The sifter’s structure is free of dents or holes that could harbor bacteria and has a smooth surface. Depending on the type of product to be processed and the diagram requirements, nylon silk or stainless steel wire mesh is used in the frames.

FEATURES AND ADVANTAGES

  • During the production of this machine, high-quality durable steel materials suitable for vibration and appropriate welding methods for these materials have been used.
  • By using boxes at different heights and adjusting the sifter under area with interposition rods, it is possible to achieve high capacity.
  • Depending on the type of machine, it is possible to use 24-30 rows of boxes in each passage.
  • To prevent condensation, optional insulation with wood or chrome coating can be applied inside the machine.
  • Safety ropes are provided as standard at every corner, along with mounting rods.
  • To secure the boxes, a system that applies pressure from above and can be adjusted to distribute the pressure towards the corners of the box is available at the upper entrance of the sifter.
